Absolute Black

OVAL DIRECT MOUNT CHAINRING FOR SHIMANO XTR, XT, SLX and Deore - PVD RAINBOW

  • Sale
  • MSRP $145.95

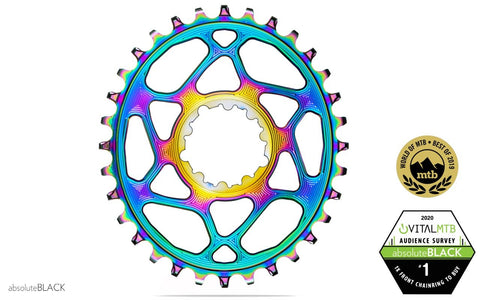

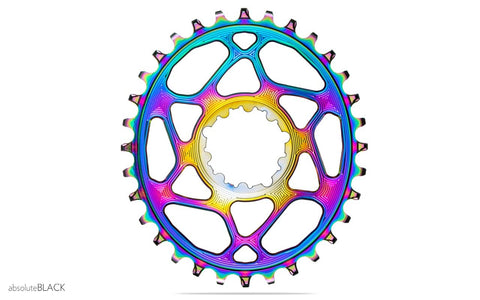

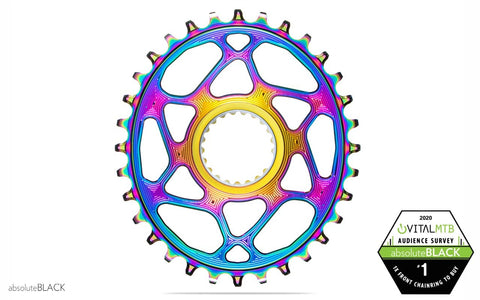

Premium Shimano 12spd Hyperglide+ compatible Direct mount 1X Oval chainrings in PVD Rainbow (oil slick) color. Designed for XTR M9100, XT M8100, SLX M7100 & Deore M6100 cranks. Super smooth pedaling experience. This chainring is specifically designed to work with CN-M9100, 8100, 7100 & 6100 Shimano 12spd Hyperglide+ chain due to different thickness of the teeth. This special PVD Rainbow Titanium coating process makes the chainrings very durable and incredibly beautiful. It is the most Premium oval chainring on the market with scientifically proven performance gains.

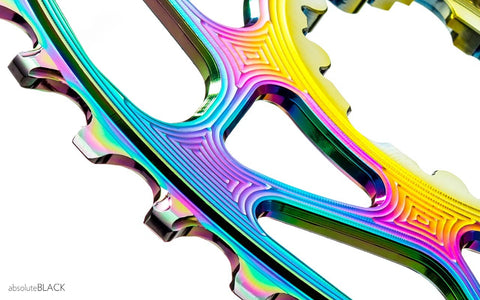

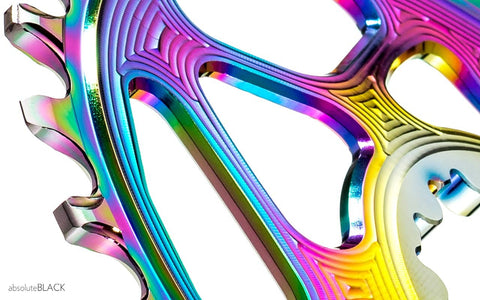

NOTE: Due to the nature of PVD process, every chainring is unique and color may vary. Not a single chainring is the same which makes your new ring completely individual. You can indicate to us, in comments section during the checkout, if you prefer more gold-purple or more blue/green-purple, but we can not guarantee to meet your request.


You can also check the same chainring in Anodized colors here.

Size (Mass +/-1g):

28T, 30T, 32T, 34T, 36T

Color

PVD Rainbow (oil slick)

Compatibility

Fits to Shimano XTR M9100 , M9120, M9130, XT M8100, M8120, M8130 , SLX M7100, M7120, M7130, Deore M6100, M6120, M6130 & FC-MT900 cranksets. Works ONLY with CN-M9100, 8100, 7100 & 6100 Shimano 12spd Hyperglide+ chain.

Material

cnc machined 7075 Txxx Aluminum. Long-lasting construction. Physical Vapour Deposition

Chainline

Dependent on the crank model. Every crank model has different axle length, but same chainrings.

Ovality

Optimized to each size separately. Range: 10.2-14.4% and Timing of 110.5-116.3° after TDC (top dead center) Patent Pending


's a Direct Mount chainring so please use original lockring to mount it on the crank. Always use a new chain with a new chainring

If you wish to check for frame clearance with new oval ring, below you can find measurement of biggest dimension of the oval (tip to tip of tooth):

28T: 127mm ; 30T: 134mm ; 32T: 143mm ; 34T: 151mm

ADVANTAGES OF OUR SPECIAL OVAL CHAINRINGS FOR SHIMANO 12SPD :

*We mastered our oval chainrings to perfection, so you can get best possible advantage from the oval/elliptical shape.
*Finest design to provide excellent weight to strength ratio
*One of a kind special oval shape (Patent Pending)
*Greatly improves traction and climbing abilities
*Unique Patent Pending narrow-wide teeth profiles to keep your chain in place for minimum 12 months!

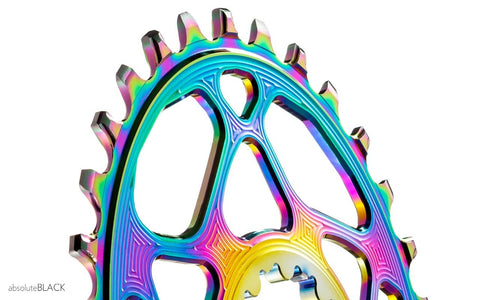

*Special 3D teeth machining for ultimate mud relief decrease wear and noise dramatically
*All rings have built in threads for easy of mounting and reduction in weight
*Superb quality and great look.
*You will ride faster using ovals. If you keep using round ring then others will get quicker.
*You will not "feel" the oval shape at all
*Reduces stress on knees

HOW TO MOUNT ABSOLUTEBLACK OVAL CHAINRING TO SHIMANO 12SPD HYPERGLIDE+ CRANK:

Using Hollowtech II BB Removal Tool (like BBB BTL-116 ), carefully open the lockring that holds the chainring on the crank(normal threads). Once the lockring is removed, take off old chainring, re-grease the splines on the crank. Place new oval chainring with convex side to the crank. Chainring/crank has special splines that only fit one way. Close the lockring to 35-50Nm of force. Chainring is only compatible with CN-M9100, M8100, M7100 & M6100 Shimano 12spd Hyperglide+ chains. Using other chains may cause chain to drop very easily from the chainring due to thinner than usual teeth.
