Absolute Black

Shimano 8000 / 9100 110x4 2x Premium Round Chainrings

  • Sale
  • MSRP $53.95


absoluteBLACK Premium Shimano 110/4 bcd compatible oval chainrings are designed for new type of Shimano cranks Dura-Ace 9100, Ultegra 8000 & 105 R7000 only. These are finest oval chainrings on the market in terms of shifting, smoothness of pedaling and manufacturing quality. (They can be also retrofitted to 9000 and 6800 cranks). 10/11/12spd compatible.

Size (Mass +/-1g):

34T (30g), 36T (38g), 38T (43g), 39T (45g), 50T (114g), 52T (129g), 53T(136g)

Color

Black, Grey (inner ring in black only)

Compatibility

In short EVERY Shimano 4 bolt crank. Shimano Dura-Ace 9100, R9120, R9150 & R9170 Di2 & all 9000 series, Ultegra 8000, R8020, R8050 & 8070 Di2 & 6800, 105- R7000, R7020, R7070, 5800, 4700. Di2 compatible. 10 / 11 / 12spd compatible. Use bolt covers for best appearance.

BOLTS

For Outer chainring please order our Bolt Covers

Changing Inner chainring only? use original bolts

Material & Finish

cnc machined 7075 Txxx Aluminum. Long-lasting construction. Type II anodizing





IMPORTANT:

*Ramps on big rings are specially configured for combinations: 50/34, 52/36, 52/38, 53/39T

*If you wish to use other configuration it will also work, but shifting will be slower and may require more "adjustments" of front dérailleur to be acceptable. Also remember that front dérailleur can only accept max 16T difference between 2 chainrings - this is how Shimano and Sram designed them.

* Absolute Black always recommends using a new chain when fitting new chainrings.

ADVANTAGES OF ABSOLUTE BLACK ROAD ROUND CHAINRINGS:

*One of a kind look
*Super stiff design due to thicker, 5mm construction
*Bespoke Absolute Black 4 / 6 point ramp and recess shifting design shifts as crisp as original
*Finest design that provides excellent strength to weight ratio

HOW TO MOUNT 110/4 9100 / 8000 ROUND CHAINRING: (SAME INSTRUCTION AS FOR 9000/6800 CRANKS)

First, you need to remove your crank from your bike. Once removed, unscrew the 4 bolts that hold two chainrings together with a T-30 torx key. Remove both original rings. Locate the new oval inner chainring with the triangular timing indicator positioned behind crank arm. The bolt holes on the small chainring are recessed – so the nut heads will sit flush with the surface of the chainring - these recesses should face you when mounting the bolts. Absolute Black outer chainring has a specific shape of mounting tabs so it will only fit one way on the crank arm.

If you are only switching the inner chainring to oval - use the original bolts that came with your crank. If you are switching to a pair of oval rings, you will need a set of regular ‘double’ chainring bolts or our set of Bolt covers. Tighten all four bolts with force of about 5-7Nm. Mount your crank back to the bike. You may also need to adjust the front derailleur slightly.



absoluteblack oval chainring mounting instruction. How to mount oval chainring to Dura-ace 9000

All Absolute Black products are designed in UK and manufactured in Poland (EU) to the highest standards of quality.

Our longterm belief in oval and development of our design, has led absoluteBLACK to become the most commercially successful oval chainring product in the world. So keep in mind that not every oval chainring is equal to an absoluteBLACK.

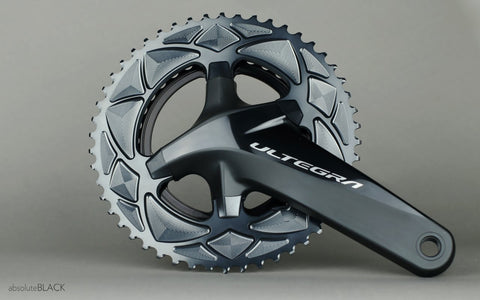

Cranks visible on the photos are not included to the purchased chainrings.

The World's finest oval (elliptical) road chainring. Non circular chainrings, Non-round chainrings. Asymmetrical chainrings.
